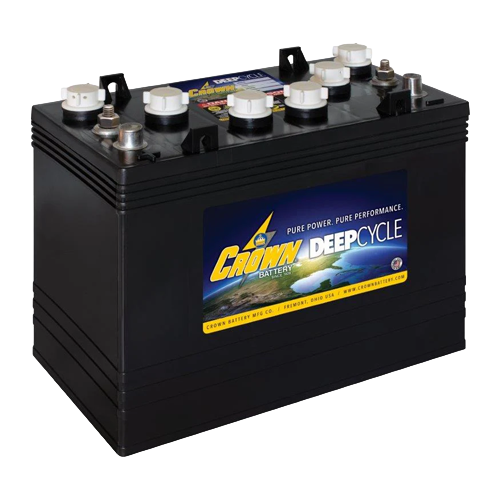

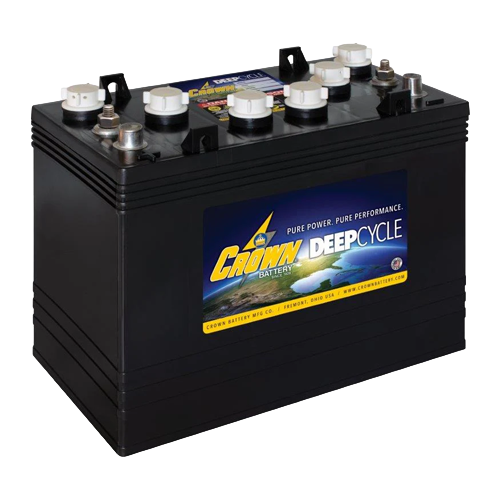

Crown CR-GC150 150Ah 12VDC Deep Cycle Flooded Lead Acid Battery

Frequently Asked Questions

What is the Crown CR-GC150 battery?
The Crown CR-GC150 is a 12VDC commercial deep cycle flooded lead acid battery rated at 150Ah at the 20-hour rate. It is designed for repeated charge and discharge cycles and can be used in solar energy storage, recreational vehicles, marine equipment, golf carts, floor equipment, and other deep cycle applications.

Is the Crown CR-GC150 a good battery for solar systems?
Yes. The Crown CR-GC150 is suitable for off-grid and other renewable energy systems that are designed around flooded lead acid batteries. It can be used as part of a larger battery bank when the system provides the correct charging profile, ventilation, maintenance access, and battery protection.

How much energy can the Crown CR-GC150 store?
The Crown CR-GC150 is rated at 150Ah at the 20-hour rate and Crown lists 1.92 kWh of rated storage at that rate. Actual usable energy depends on discharge rate, temperature, battery condition, system losses, and the depth of discharge used by the system.

What type of solar system is the Crown CR-GC150 best suited for?
The Crown CR-GC150 is well suited for off-grid and backup solar systems that use flooded lead acid battery technology. It can be used in cabins, RVs, remote power systems, and other applications where dependable deep cycle energy storage and regular battery maintenance are possible.

What is the reserve capacity of the Crown CR-GC150?

• 61 minutes of reserve capacity at a 75-amp discharge rate
• 103 minutes of reserve capacity at a 56-amp discharge rate
• 243 minutes of reserve capacity at a 25-amp discharge rate

Reserve capacity varies depending on the discharge rate and should be considered when planning backup power requirements.

Charging & Maintenance

How should the Crown CR-GC150 be charged in a solar system?
The Crown CR-GC150 should be charged using a solar charge controller configured for a flooded lead acid battery. The charging settings should follow Crown's recommendations and match the complete battery-bank configuration. Proper charging helps prevent chronic undercharging and excessive overcharging.

Does the Crown CR-GC150 require watering?
Yes. The CR-GC150 is a flooded lead acid battery and requires periodic electrolyte inspection and watering. Use distilled or de-mineralized water and maintain the electrolyte at the proper level. Always follow appropriate battery safety procedures when servicing the battery.

How often should the Crown CR-GC150 be inspected?
Inspection frequency depends on charging settings, cycling frequency, temperature, battery age, and operating conditions. Regular inspections help establish how quickly electrolyte levels change and allow the maintenance schedule to be adjusted for the actual installation.

Does the Crown CR-GC150 need ventilation?
Yes. Flooded lead acid batteries can release hydrogen gas during charging. The Crown CR-GC150 should be installed in a properly ventilated location and kept away from flames, sparks, cigarettes, and other ignition sources.

Crown Battery Comparison

How does the Crown CR-GC150 compare with the Crown CR-GC155?
The Crown CR-GC150 and Crown CR-GC155 use the same 12VDC GC12 battery profile and have the same listed dimensions. The CR-GC155 provides 155Ah compared with 150Ah for the CR-GC150, giving it slightly more rated storage. The CR-GC150 is lighter at 81 lbs compared with 88 lbs for the CR-GC155.

When should I choose the Crown CR-GC150 instead of the Crown CR-GC155?
The Crown CR-GC150 may be the better choice when 150Ah capacity meets the system requirement and keeping battery weight lower is useful. The Crown CR-GC155 provides slightly more capacity and reserve performance when maximizing storage from the same battery footprint is more important.

What is the difference between the Crown CR-GC150 and the Crown 31HDC?
Both are 12VDC flooded lead acid deep cycle batteries, but they serve somewhat different design priorities. The Crown CR-GC150 provides 150Ah capacity in the GC12 profile, while the Crown 31HDC provides 130Ah in a commercial heavy-duty format. The CR-GC150 offers more rated capacity, while the 31HDC is a compact commercial option.

Solar Application & Battery Life

What depth of discharge is recommended for the Crown CR-GC150 in a solar system?
Avoiding unnecessary deep discharges can help reduce battery stress and support longer service life. The appropriate operating depth depends on the system design, daily energy demand, charging capability, cycling frequency, and desired battery life.

Can the Crown CR-GC150 be connected in series or parallel?
Yes. Matching batteries can be connected in series to increase system voltage or in parallel to increase total amp-hour capacity. The battery bank should use properly sized cables, protection, and connections, and the complete configuration should be compatible with the charge controller and inverter.

Can the Crown CR-GC150 be used in an RV or marine application?
Yes. The Crown CR-GC150 can be used in RV and marine applications that require deep cycle power. The installation should protect the battery from excessive vibration, moisture, extreme temperatures, and incorrect charging.

Can the Crown CR-GC150 be installed on its side?
No. The Crown CR-GC150 is a flooded lead acid battery containing liquid electrolyte and should be installed upright. Upright installation also allows proper inspection, watering, and routine maintenance.

What should I check if my Crown CR-GC150 is not holding a charge?
Check the solar charge controller settings, charging source, battery connections, terminal condition, electrolyte level, and recent discharge history. Persistent undercharging can cause performance problems. If the charging system is operating correctly and the battery still performs poorly, professional battery testing may be needed.
