Frequently Asked Questions

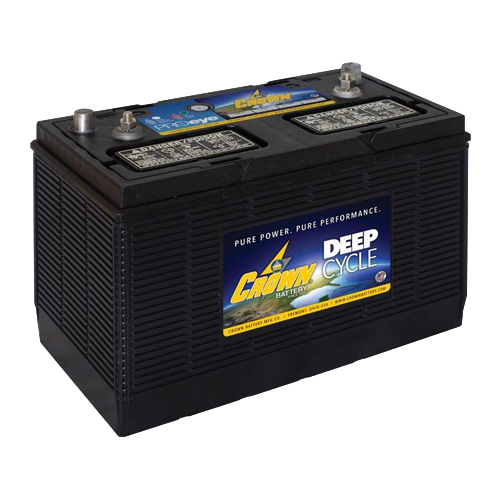

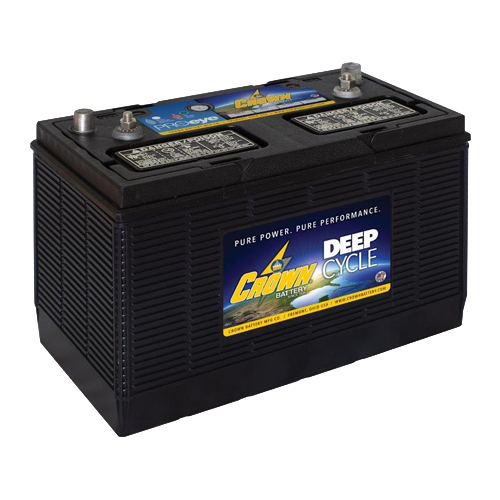

What is the Crown 31HDC battery?
The Crown 31HDC is a 12VDC commercial deep cycle flooded lead acid battery rated at 130Ah at the 20-hour rate. It is designed for applications that require repeated charging and discharging rather than the short bursts of power associated with automotive starting batteries.
Is the Crown 31HDC suitable for solar applications?
Yes. The Crown 31HDC can be used in off-grid solar and renewable energy systems that are designed for flooded lead acid batteries. It is especially useful where the system can provide proper charging, ventilation, electrolyte inspection, and regular maintenance.
How much energy does the Crown 31HDC provide?
The Crown 31HDC is rated at 130Ah at the 20-hour rate and Crown lists 1.69 kWh of rated energy at that rate. Actual usable energy will vary depending on discharge rate, temperature, battery condition, system losses, and the depth of discharge selected for the installation.
How many Crown 31HDC batteries are needed for a solar battery bank?
The number depends on the required system voltage, daily energy consumption, desired backup time, solar production, inverter requirements, and allowable depth of discharge. Because each battery is 12VDC:
- 2 Crown 31HDC batteries in series create a 24VDC battery bank.
- 4 Crown 31HDC batteries in series create a 48VDC battery bank.
Additional properly matched series strings can be connected in parallel when more amp-hour capacity is required.
What installation space is required for the Crown 31HDC?
Before installation, confirm that the battery compartment provides enough room for the Crown 31HDC, including clearance around the terminals and space for inspection, watering, cable connections, and ventilation. The battery should be installed upright in a secure, properly ventilated location.
Charging & Maintenance
How should the Crown 31HDC be charged in a solar system?
The Crown 31HDC should be charged with a solar charge controller configured for a flooded lead acid battery. The charging profile should match the battery manufacturer's requirements and the complete battery-bank configuration. Proper charging helps reduce the risk of chronic undercharging or overcharging.
Does the Crown 31HDC require watering?
Yes. The Crown 31HDC is a flooded lead acid battery and requires periodic electrolyte inspection and watering. Use distilled or de-mineralized water and maintain the electrolyte at the proper level. Follow Crown's maintenance and safety guidance when servicing the battery.
How often should the Crown 31HDC be inspected?
Inspection frequency depends on charging settings, cycling, temperature, battery age, and operating conditions. For a new flooded battery installation, regular inspections help establish how quickly the electrolyte level changes so the maintenance schedule can be adjusted appropriately.
Can regular tap water be used in the Crown 31HDC?
No. Use distilled or de-mineralized water for flooded lead acid battery maintenance. Minerals and impurities in ordinary tap water can contaminate the electrolyte and contribute to reduced battery performance and service life.
Does the Crown 31HDC need ventilation?
Yes. Flooded lead acid batteries can release hydrogen gas during charging. The Crown 31HDC should therefore be installed in a properly ventilated location and kept away from flames, sparks, cigarettes, and other ignition sources. Appropriate protective equipment should also be used during battery service.
Crown Battery Comparison
How does the Crown 31HDC compare with the Crown 27HDC?
The Crown 31HDC provides 130Ah at the 20-hour rate compared with 115Ah for the
Crown 27HDC. The 31HDC also has higher rated energy and reserve capacity, making it the better choice when more storage is needed within a similar 12VDC commercial deep cycle battery format.
|
Specification
|
27HDC
|
31HDC
|
|
Voltage
|
12VDC
|
12VDC
|
|
Capacity (20 Hr)
|
115Ah
|
130Ah
|
|
Capacity (5 Hr)
|
95Ah
|
105Ah
|
|
Storage kWh (20 Hr)
|
1.51 kWh
|
1.69 kWh
|
|
Reserve Capacity
|
180 min @ 75A
|
200 min @ 75A
|
|
Dimensions
|
12.95 x 6.81 x 9.38 in (32.89 x 17.30 x 23.83 cm)
|
13.00 x 6.75 x 9.38 in (33.02 x 17.15 x 23.83 cm)
|
|
Weight
|
58 lbs (26.3 kg)
|
66 lbs (29.9 kg)
|
|
Terminal Type
|
Dual post/Stud combination
|
Dual post/Stud combination
|
Is the Crown 31HDC a better choice than the Crown 27HDC for solar storage?
If the installation has enough physical space and the additional weight is acceptable, the Crown 31HDC offers more rated capacity and reserve capacity. The Crown 27HDC may be preferable when slightly lower capacity and a lighter battery are more suitable for the installation.
How does the Crown 31HDC compare with the Crown 24HDC?
The Crown 31HDC has greater capacity than the
Crown 24HDC, providing 130Ah at the 20-hour rate compared with 90Ah. It also provides greater rated energy and reserve capacity, making it more suitable when a 12VDC solar system requires additional storage from each battery.
|
Specification
|
24HDC
|
31HDC
|
|
Voltage
|
12VDC
|
12VDC
|
|
Capacity (20 Hr)
|
90Ah
|
130Ah
|
|
Capacity (5 Hr)
|
70Ah
|
105Ah
|
|
Storage kWh (20 Hr)
|
1.11 kWh
|
1.69 kWh
|
|
Reserve Capacity
|
140 min @ 75A
|
200 min @ 75A
|
|
Dimensions
|
11.06 x 6.81 x 9.38 in (28.09 x 17.30 x 23.83 cm)
|
13.00 x 6.75 x 9.38 in (33.02 x 17.15 x 23.83 cm)
|
|
Weight
|
50 lbs (22.7 kg)
|
66 lbs (29.9 kg)
|
|
Terminal Type
|
Dual post/Stud combination
|
Dual post/Stud combination
|
Solar Application & Battery Life
What depth of discharge is recommended for the Crown 31HDC in solar applications?
For a flooded lead acid solar battery bank, avoiding unnecessary deep discharges can help reduce battery stress and improve service life. The actual operating depth should be selected based on the system's energy requirements, charging capability, expected cycling, and the manufacturer's recommendations.
Can the Crown 31HDC be connected in series or parallel?
Yes. Batteries of the same model and specification can generally be connected in series to increase system voltage or in parallel to increase amp-hour capacity, provided the complete installation is designed for the battery bank configuration. Use properly sized cables, protection, and connections.
Can the Crown 31HDC be used for RV and marine applications?
Yes. The 31HDC is suitable for applications such as RVs and marine equipment where deep cycling is required. The installation should provide appropriate protection from vibration, moisture, temperature extremes, and improper charging.
Can the Crown 31HDC be installed on its side?
No. The Crown 31HDC is a flooded lead acid battery containing liquid electrolyte and should be installed upright. Correct positioning also makes inspection, watering, and routine service easier and safer.
What should I check if my Crown 31HDC is not holding a charge?
Start by checking the charging source, charge-controller settings, battery connections, terminal condition, electrolyte level, and recent discharge history. A battery that remains undercharged can develop performance problems. If the issue continues after the charging system is verified, professional battery testing may be appropriate.
