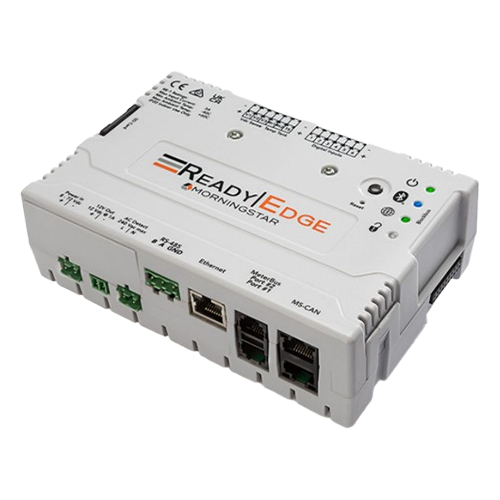

Morningstar RE-1 ReadyEdge Intelligent Monitor
Manufacturer Part#: RE-1
The Morningstar ReadyEdge RE-1 Intelligent Monitor is an advanced monitoring and control hub designed for off-grid and hybrid solar power systems. Built to integrate seamlessly with Morningstar charge controllers, inverters, and accessories, the ReadyEdge delivers real time system visibility, data aggregation, and intelligent system management through a single, intuitive platform.
With powerful communication and monitoring capabilities, the ReadyEdge allows system owners and installers to track battery performance, energy production, and system health locally or remotely. Using the LiveView web interface or optional Morningstar Solar Connect cloud service, users can access critical system data from anywhere, enabling proactive maintenance and improved system reliability. More than just a monitor, the ReadyEdge also provides intelligent control of auxiliary power sources such as generators and AC chargers. With configurable alerts and programmable inputs and outputs, the RE-1 can detect system changes, trigger notifications, and automate backup power functions to ensure continuous energy availability in demanding off-grid environments.
Designed for flexibility and expansion, the ReadyEdge can connect with up to 16 compatible Morningstar devices and supports additional hardware modules such as ReadyBlocks, ReadyShunts, and ReadyRelays for expanded monitoring and control. Whether used in telecom systems, remote infrastructure, rural electrification, or residential off-grid installations, the ReadyEdge provides the intelligence needed to manage energy systems efficiently and reliably.
Includes DIN Rail to install (3) ReadyBlocks and cables for (2) connected charge controllers.
Key Features
- Intelligent monitoring and control for off-grid and hybrid solar systems
- Centralized monitoring for up to 16 Morningstar devices
- Local monitoring via LiveView web interface
- Remote monitoring through Morningstar Solar Connect cloud
- Integrated battery monitoring with state-of-charge and performance tracking
- Automatic generator start and auxiliary power management
- Custom alerts and programmable digital inputs for system monitoring
- Supports Modbus, SNMP, Ethernet, Bluetooth, and MeterBus communication protocols
- Expandable with ReadyBlocks, ReadyShunt battery meters, and ReadyRelay modules
- Compatible with 12V, 24V, 36V, and 48V battery systems
