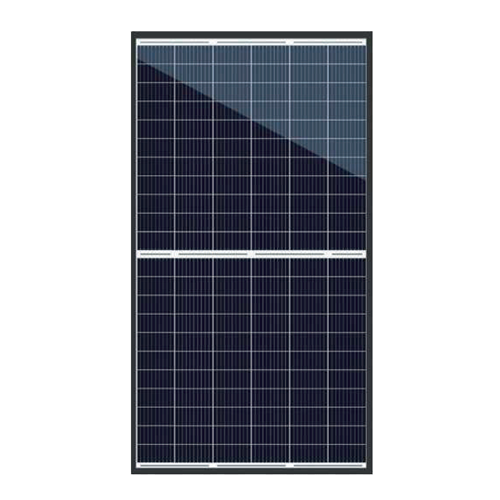

HT-SAAE MULTIWAY+ Series HT66-166M-405W 405Watt 132 1/2 Cells Bifacial Monocrystalline 30mm Black Frame Solar Panel

HT-SAAE MULTIWAY+ Series HT66-166M-405W 405Watt 132 1/2 Cells Bifacial Monocrystalline 30mm Black Frame Solar Panel

Manufacturer Part#: HT66-166M-405W

The HT66-166M-405W is a high-performance monocrystalline solar panel engineered for both commercial and residential installations seeking long-term reliability and efficiency. Featuring 132 half-cut cells in a 6 × 22 layout, it reduces internal resistance and improves energy output under diverse light conditions.

With a nominal output of 405 W and compatibility with high-voltage systems (up to 1500 V DC), this module supports larger string configurations and reduced balance-of-system (BoS) costs. It comes in a robust anodized aluminum frame, tempered high-transmission glass, and an IP68-rated junction box for durable outdoor use.

Key Features:

• 405 W power output for high energy yield per panel
• Half-cut cell technology (132 cells) and 9-busbar design for enhanced efficiency and reduced hot-spot risk
• Rated for up to 1500 V DC system voltage for streamlined system design and reduced BoS components
