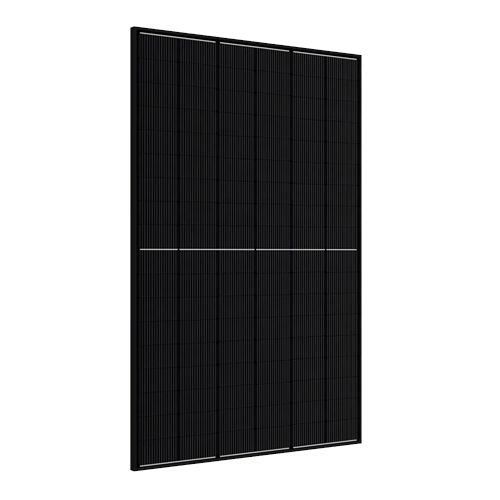

CW Energy CWT595-144TNB10-PALLET 595Watt 144 1/2 Cells Monofacial Monocrystalline 35mm Black Frame Solar Panel (Pallet Of 30 Modules)

CW Energy CWT595-144TNB10-PALLET 595Watt 144 1/2 Cells Monofacial Monocrystalline 35mm Black Frame Solar Panel (Pallet Of 31 Modules)
Save 5% with code AMERICA5


  • This item requires Freight Shipping. Freight rates start at $199

  • This is a pallet order. Qty 1 = 30 modules

Our Price: $6,222.41


Product Code: CWT595-144TNB10-PALLET


Terms and Conditions*:
I agree to the Shipping & Delivery Policy.

Qty:
Description Document(s)


CW Energy CWT595-144TNB10-PALLET 595Watt 144 1/2 Cells Monofacial Monocrystalline 35mm Black Frame Solar Panel (Pallet Of 30 Modules)

Manufacturer Part#: CWT595-144TNB10-PALLET

  • Utilizes advanced N-type TOPCon (Tunnel Oxide Passivated Contact) cells, which capture sunlight from both sides of the panel. This technology enables bifacial energy gains, potentially increasing total power generation by up to 30% depending on the mounting surface's reflectivity.
  • This specific 595Wp model achieves a high module efficiency of 23.03%. It is designed to maintain outstanding performance even in weak light conditions, such as early morning or cloudy weather.
  • Features a glass-to-glass (double glazing) construction with two layers of EVA laminate. This design provides superior mechanical strength and protection against environmental stress, allowing it to withstand extreme wind loads (up to 2400 Pa) and snow loads (up to 5400 Pa).
  • Due to the lower degradation rates of N-type cells and robust glass construction, the panel comes with a 30-year linear performance warranty (guaranteeing ~87.4% output after 30 years) and a 12-year product warranty.
  • The front glass is treated with a specialized anti-reflection coating that reduces surface dust accumulation. This "self-cleaning" effect helps maintain high energy production over time with lower maintenance requirements.

This is a pallet order - 30 modules to a pallet.

This item cannot ship UPS Ground. Please select the "FREIGHT SHIPPING QUOTE ONLY” option at checkout. Once we process your order, we will contact you with the shipping options. For questions, please contact us at 800-942-2424 ext 1.

Specifications

Full data sheet can be found in the Document(s) tab above.

Electrical Characteristics
Peak Power (Pmax) 595 Wp
Module Efficiency (%) 23.03
Maximum Power Voltage (Vmp) 43.55
Maximum Power Current (Imp) 13.67
Open Circuit Voltage (Voc) 51.58
Short Circuit Current (Isc) 14.53
Power Tolerance 0~+5W
Maximum System Voltage 1500 VDC
Operating Temperature -40 ~ +85°C
Protection Class Class II
Maximum Series Fuse Rating 25 A

Packing Configuration
Container 40' GP
Pieces per Pallet 30
Pallet Per Container 20
Mechanical Specifications
Cell Dimensions 182 x 91 mm
7.16 x 3.58 in
Cells per Module 144 (6x24)
Weight 29.0 kg / 63.93 lbs
Panel Dimensions 2278 x 1134 x 35 mm
89.68 x 44.64 x 1.37 in
Max. Wind/Snow Load(Pa) 2400 / 5400 lb
50 / 212 ft2
Junction Box IP68
Junction Box Cable Length 350 - 1600 mm
13.78 - 63.00 in
Frame Color Silver / Black

Temperature Characteristics
Temp. Coeff. of (Isc) 0.040%/°C
Temp. Coeff. of (Voc) -0.260%/°C
Temp. Coeff. of (Pmax) 0.30%/°C
