Frequently Asked Questions

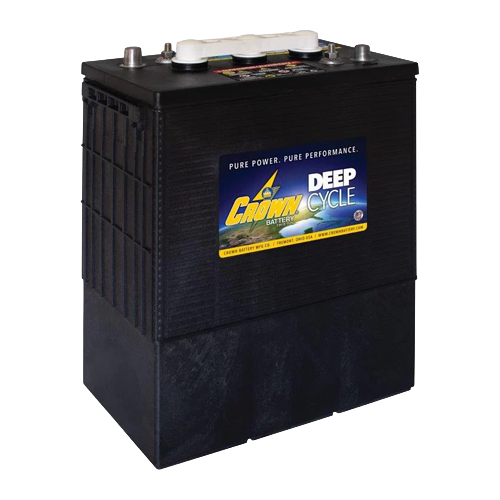

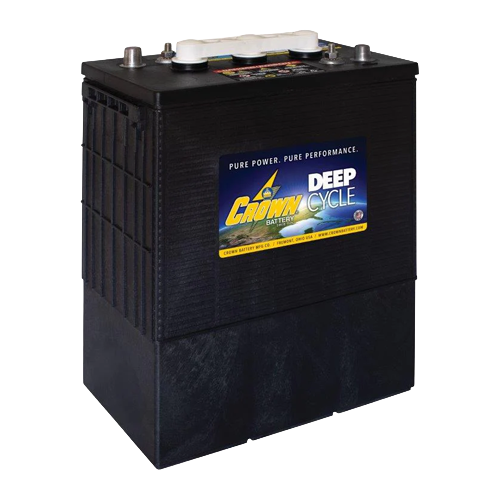

What is the Crown CR-430 battery?
The Crown CR-430 is a 6VDC deep cycle flooded lead acid battery rated at 430Ah at the 20-hour rate. It is designed for applications requiring repeated charging and discharging, including solar energy storage, renewable energy systems, backup power, RVs, marine equipment, floor machines, electric vehicles, and industrial equipment.
Is the Crown CR-430 a good choice for solar power systems?
Yes. The Crown CR-430 is designed for deep cycle applications and provides 430Ah of capacity at the 20-hour rate. It can be used in off-grid PV systems, renewable energy storage, and battery-backed solar systems where regular flooded battery maintenance is practical.
How much energy does the Crown CR-430 store?
The Crown CR-430 provides approximately 2.50 kWh of rated energy storage at the 20-hour rate. The actual amount of energy available to a solar system will vary with discharge rate, depth of discharge, temperature, battery condition, and system efficiency.
How many Crown CR-430 batteries are needed for a solar battery bank?
The number of batteries depends on the required system voltage, daily energy consumption, backup time, inverter requirements, solar production, and desired depth of discharge. Because the Crown CR-430 is 6VDC:
- Two Crown CR-430 batteries in series create a 12VDC battery bank.
- Four Crown CR-430 batteries in series create a 24VDC battery bank.
- Eight Crown CR-430 batteries in series create a 48VDC battery bank.
Additional parallel strings can be used when more amp-hour capacity is required, provided the battery bank is designed and wired correctly.
What type of applications can use the Crown CR-430?
In addition to solar energy storage, the Crown CR-430 can be used in renewable energy systems, backup power, RVs, marine equipment, floor machines, electric vehicles, and other equipment requiring a high-capacity deep cycle battery.
What does the BCI Group 903 rating mean for the Crown CR-430?
BCI Group 903 identifies the battery's physical size and configuration within the Battery Council International group system. The Crown CR-430 uses this larger commercial deep cycle form factor, so the battery enclosure, rack, cable routing, and terminal clearance should be checked before installation.
Charging & Maintenance
How should the Crown CR-430 be charged in a solar system?
The Crown CR-430 should be charged with a solar charge controller configured for flooded lead acid batteries and according to Crown's charging requirements for the installation. The charger must also be properly matched to the voltage of the complete battery bank. Correct charging helps prevent chronic undercharging and excessive charging, both of which can reduce battery performance and service life.
Does the Crown CR-430 require watering?
Yes. The Crown CR-430 is a flooded lead acid battery and requires periodic electrolyte inspection and watering. Use distilled or de-mineralized water and maintain the electrolyte at the proper level. Watering needs vary depending on charging settings, cycling frequency, temperature, and battery age.
How often should I check the Crown CR-430?
A regular inspection schedule should be established based on the operating conditions of the battery bank. Frequent cycling, high temperatures, and charging practices can affect watering requirements, so the battery should be checked regularly to establish an appropriate maintenance schedule.
Can I use tap water in the Crown CR-430?
No. Use distilled or de-mineralized water when servicing the battery. Minerals and impurities found in tap water can contaminate the electrolyte and negatively affect battery performance and service life.
Does the Crown CR-430 need ventilation?
Yes. Flooded lead acid batteries can produce hydrogen gas during charging. The Crown CR-430 should be installed in a properly ventilated location and kept away from sparks, flames, cigarettes, and other ignition sources.
Crown Battery Comparison
What is the difference between the Crown CR-390 and Crown CR-430?
The Crown CR-390 and Crown CR-430 are both 6VDC BCI Group 903 deep cycle flooded lead acid batteries with the same listed physical dimensions. The Crown CR-430 provides 430Ah compared with 390Ah for the Crown CR-390, increasing rated 20-hour energy storage from approximately 2.27 kWh to 2.50 kWh. The Crown CR-430 is also heavier and provides more capacity for applications where maximizing energy storage is more important than minimizing battery weight.
|
Specification
|
CR-390
|
CR-430
|
|
Voltage
|
6VDC
|
6VDC
|
|
Capacity (20 Hr)
|
390Ah
|
430Ah
|
|
Capacity (5 Hr)
|
310Ah
|
340Ah
|
|
Storage kWh (20 Hr)
|
2.27 kWh
|
2.50 kWh
|
|
Dimensions
|
12.38 x 7.19 x 16.13 in (31.4 x 18.3 x 41.0 cm)
|
12.38 x 7.19 x 16.13 in (31.4 x 18.3 x 41.0 cm)
|
|
Weight
|
115 lbs (52.2 kg)
|
122 lbs (55.3 kg)
|
|
Terminal Type
|
Dual post/Stud combination
|
Dual post/Stud combination
|
How does the Crown CR-430 compare with the Crown CR-370?
The Crown CR-430 and Crown CR-370 are both 6VDC BCI Group 903 deep cycle flooded lead acid batteries. The Crown CR-430 provides 430Ah compared with 370Ah for the Crown CR-370, giving it approximately 2.50 kWh of rated 20-hour energy storage compared with approximately 2.15 kWh. The Crown CR-370 is lighter, while the Crown CR-430 provides greater capacity for larger solar battery banks.
|
Specification
|
CR-370
|
CR-430
|
|
Voltage
|
6VDC
|
6VDC
|
|
Capacity (20 Hr)
|
370Ah
|
430Ah
|
|
Capacity (5 Hr)
|
295Ah
|
340Ah
|
|
Storage kWh (20 Hr)
|
2.15 kWh
|
2.50 kWh
|
|
Dimensions
|
12.38 x 7.19 x 16.13 in (31.4 x 18.3 x 41.0 cm)
|
12.38 x 7.19 x 16.13 in (31.4 x 18.3 x 41.0 cm)
|
|
Weight
|
109 lbs (49.4 kg)
|
122 lbs (55.3 kg)
|
|
Terminal Type
|
Dual post/Stud combination
|
Dual post/Stud combination
|
Solar Application & Battery Life
How deeply should the Crown CR-430 be discharged in a solar system?
For regular solar cycling, avoiding unnecessary deep discharges can help extend battery life. A properly sized battery bank can reduce the need for excessive daily discharge and provide additional capacity during periods of limited solar production. The actual discharge limit should be based on the battery manufacturer's recommendations and the system design.
How long can the Crown CR-430 last in a solar application?
There is no single lifespan that applies to every Crown CR-430 installation. Service life depends on depth of discharge, charging, temperature, watering, maintenance, cycling frequency, and other operating conditions. Shallower cycling, proper charging, and regular maintenance can help support longer battery life.
Can the Crown CR-430 be installed on its side?
No. The Crown CR-430 is a flooded lead acid battery containing liquid electrolyte and should be installed upright. Proper positioning also allows the battery to be inspected and serviced correctly.
Is the Crown CR-430 maintenance free?
No. The Crown CR-430 is a flooded lead acid battery and requires periodic electrolyte inspection and watering. Customers who want less routine maintenance may consider another Crown battery technology, but the replacement must be compatible with the solar system's charging equipment, voltage, available space, and energy requirements.
What should I check if the Crown CR-430 is not performing as expected?
Start with a visual inspection for damaged cases, loose or corroded terminals, cable problems, and low electrolyte levels. The battery should be fully charged before testing. Persistent low performance can be associated with undercharging, sulfation, excessive discharge, low electrolyte, high temperature, poor connections, or battery age.
