S-5! Clamps S-5-R465 Seam Attachment For Metal Roofs

S-5! Clamps S-5-R465-Mini Seam Attachment For Metal Roofs



Our Price: $11.05

Product Code: S-5-R465
Qty:

Description Document(s)

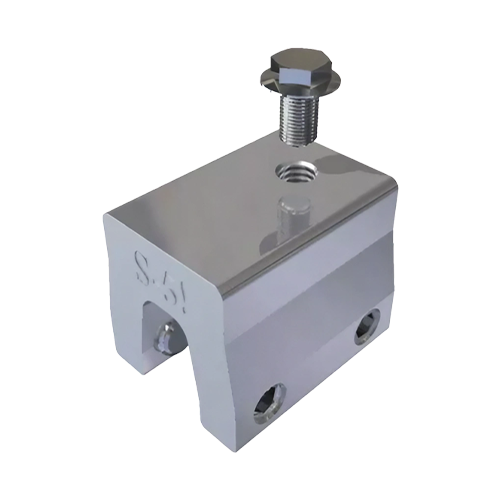

S-5! Clamps S-5-R465 Seam Attachment For Metal Roofs

Manufacturer Part#: S-5-R465

The S-5-R465 was created specifically to fit the Zambelli RIB-ROOF 465, McElroy Metal Mirage II, Rib Roof Metal Systems Rib Roof, and similar roof profiles (see image below). The S-5-R465 replaces the S-5-R, proving to have more than three times the holding strength. The clamps are uniquely designed with opposing setscrews to maximize holding strength.

The S-5-R465 clamp comes complete with four [4] 3/8-24 x 0.50" setscrews and one [1] M8-1.25 x 16mm Hex Flange Bolt. All hardware is stainless steel. The S-5-R465 has been tested by an accredited laboratory and is perfect for use with snow retention systems, including S-5! ColorGard.

Installing solar, satellite dishes, or other less demanding roof mount products? The S-5-R465-Mini clamp may be a better choice.

Roof Profile

EU bulb seam roof profile
Specifications

Full brochure data sheet can be found in the Document(s) tab above.

Dimension 1.59 x 1.63 x 3.97 inch
Weight 10.4oz
