S-5! Clamps S-5-R465-Mini Seam Attachment For Metal Roofs

S-5! Clamps S-5-R465-Mini Seam Attachment For Metal Roofs



Our Price: $8.61

Product Code: S-5-R465-MINI
Qty:

Description Document(s)

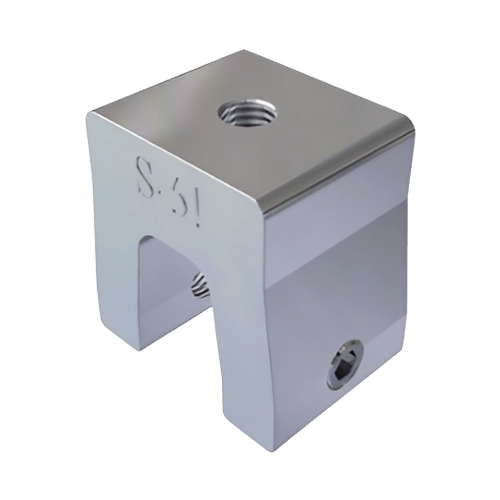

S-5! Clamps S-5-R465-Mini Seam Attachment For Metal Roofs

Manufacturer Part#: S-5-R465-Mini

The S-5-R465-Mini was created specifically to fit the Zambelli RIB-ROOF 465, McElroy Metal s Mirage II, Rib Roof Metal Systems Rib Roof, and similar roof profiles (see image below). The S-5-R465-Mini replaces the S-5-R Mini, proving to have more than three times the holding strength. The clamps are uniquely designed with opposing setscrews to maximize holding strength. The S-5-R465-Mini is a bit shorter than the S-5-R465 seam clamp, having only one setscrew on each side rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment just about anything!

If you are using S-5! ColorGard, you should use the S-5-R465 seam clamp.

The S-5-R465-Mini clamp comes complete with two [2] 3/8-24 x 0.50" setscrew. All hardware is stainless steel. The Hex bolt is no longer standard with S-5! mini clamps.

Roof Profile

EU bulb seam roof profile
Specifications

Full brochure data sheet can be found in the Document(s) tab above.

Dimension 1.59 x 1.63 x 2.38 inch
Weight 6.16oz
