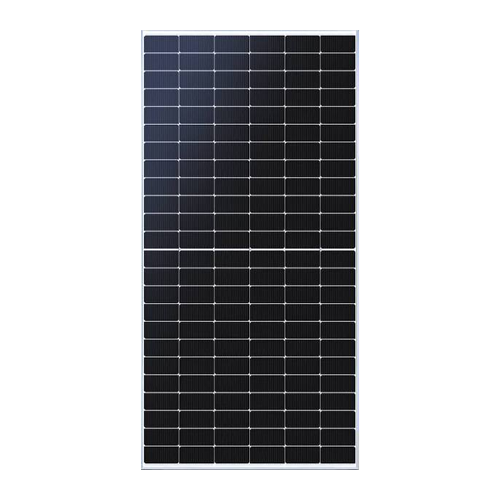

Phono Solar Draco Series PS595M8GF-24-TNH-PALLET 595Watt 144 1/2 Cells Bifacial Clear Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)

Phono Solar Draco Series PS595M8GF-24-TNH-PALLET 595Watt 144 1/2 Cells Bifacial Clear Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)
Save 5% with code AMERICA5


  • This item requires Freight Shipping. Freight rates start at $199

  • This is a pallet order. Qty 1 = 36 modules

Our Price: $8,029.76


Product Code: PS595M8GF-24-TNH-PALLET


Terms and Conditions*:
I agree to the Shipping & Delivery Policy.

Qty:
Description Document(s)


Phono Solar Draco Series PS595M8GF-24-TNH-PALLET 595Watt 144 1/2 Cells Bifacial Clear Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)

Manufacturer Part#: PS595M8GF-24-TNH-PALLET

The Phono Solar Draco Series PS595M8GF-24-TNH is the highest-capacity, 595watt premium monocrystalline solar module within its specific product class, built for massive utility grids, commercial arrays, and industrial roofs. Leveraging cutting edge Ntype S-TOPCon 2.0 passivating contact cells, this robust dual glass panel maximizes space optimization by pushing peak module efficiency up to 23.03%.

Key Features:

  • Maximum Density 23.03% Efficiency: Hits the absolute performance peak of the Draco M8 series, packing a massive 595W of power into a compact footprint to drive down balance-of-system (BOS) costs.
  • Advanced S-TOPCon 2.0 Security: Implements full electrical cell isolation that eliminates polysilicon wrap around, completely neutralizing leakage current to ensure safer, PID free rooftop operation.
  • Minimizes internal resistive losses and substantially optimizes panel energy output during partial shading or overcast weather.

This is a pallet order - 36 modules to a pallet.

This item cannot ship UPS Ground. Please select the "FREIGHT SHIPPING QUOTE ONLY” option at checkout. Once we process your order, we will contact you with the shipping options. For questions, please contact us at 800-942-2424 ext 1.

Specifications

Full data sheet can be found in the Document(s) tab above.

Mechanical Characteristics
Cell Type N Type Monocrystalline
Glass 2.0mm/2.0mm toughened glass
Junction Box Anodized Aluminium Alloy
Cable (Including Connector) 4mm² (IEC),(+): 450mm,(-): 250mm
or Customized Length
Dimensions 2278 x 1134 x 30 mm
89.69 x 44.65 x 1.18 in
Weight 32.0 kg I 70.55 lb

Temperature Ratings
Voltage Temperature Coefficient -0.25%/°C
Current Temperature Coefficient +0.04%/°C
Power Temperature Coefficient -0.29%/°C
Tolerance 0~+3w
NOCT 42±2°C
Bifaciality 80±5%
Electrical Typical Values
1500 V STC NOCT
Rated Power (Pmpp) 595 456
Rated Current (Impp) 13.60 10.91
Rated Voltage (Vmpp) 43.75 41.59
Short Circuit Current (Isc) 14.32 11.53
Open Circuit Voltage (Voc) 52.92 50.67
Module Efficiency 23.03 %

Absolute Maximum Rating
Operating Temperature From -40 to +85°C
Hail Diameter @ 80km/h Up to 25mm
Front Side Maximum Static Loading 5400Pa
Rear Side Maximum Static Loading 2400Pa
Maximum Series Fuse Rating 30A
Fire Rating (UL 61730) C
Maximum System Voltage DC 1000V/1500V
