Phono Solar Draco Series PS585M8GF-24-TNH-PALLET 585Watt 144 1/2 Cells Bifacial Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)

Phono Solar Draco Series PS585M8GF-24-TNH-PALLET 585Watt 144 1/2 Cells Bifacial Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)
Save 5% with code AMERICA5


  • This item requires Freight Shipping. Freight rates start at $199

  • This is a pallet order. Qty 1 = 36 modules

Our Price: $8,218.54


Product Code: PS585M8GF-24-TNH-PALLET


Terms and Conditions*:
I agree to the Shipping & Delivery Policy.

Qty:
Description Document(s)

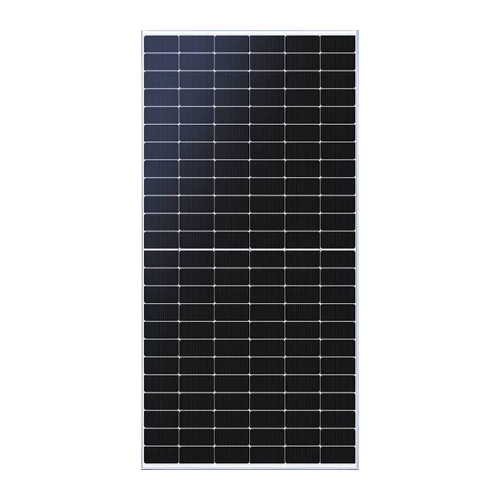

Phono Solar Draco Series PS585M8GF-24-TNH-PALLET 585Watt 144 1/2 Cells Bifacial Monocrystalline 30mm Silver Frame Solar Panel (Pallet Of 36 Modules)

Manufacturer Part#: PS585M8GF-24-TNH-PALLET

The Phono Solar Draco Series PS585M8GF-24-TNH is a high efficiency, 585watt monocrystalline solar module designed for commercial, industrial, and utility scale power generation. Utilizing premium Ntype TOPCon cell technology, this dual glass panel delivers exceptional reliability, low degradation rates, and optimized energy yield under diverse environmental conditions.

Key Features:

  • Collects light from both sides to generate up to 30% additional power yield depending on the surface albedo, supported by a cell bifaciality rating exceeding 80%.
  • Combines monocrystalline structure with Passivated Emitter and Rear Cell (PERC) technology to deliver a high 18.8%+ module efficiency, ensuring maximum electricity generation out of a smaller physical footprint.
  • Features an advanced, optimized temperature coefficient that ensures highly competitive, stable energy production even during intense summer heat

This is a pallet order - 36 modules to a pallet.

This item cannot ship UPS Ground. Please select the "FREIGHT SHIPPING QUOTE ONLY” option at checkout. Once we process your order, we will contact you with the shipping options. For questions, please contact us at 800-942-2424 ext 1.

Specifications

Full data sheet can be found in the Document(s) tab above.

Mechanical Characteristics
Cell Type N Type Monocrystalline
Glass 2.0mm/2.0mm toughened glass
Junction Box Anodized Aluminium Alloy
Cable (Including Connector) 12AWG(UL)4mm² (IEC), (+): 350mm,(-):
250mm or Customized Length
Dimensions 2278 x 1134 x 30 mm
89.69 x 44.65 x 1.18 in
Weight 32.0 kg I 70.55 lb

Temperature Ratings
Voltage Temperature Coefficient -0.25%/°C
Current Temperature Coefficient +0.04%/°C
Power Temperature Coefficient -0.29%/°C
Tolerance 0~+3w
NOCT 42±2°C
Bifaciality 80±5%
Electrical Typical Values
1500 V STC NOCT
Rated Power (Pmpp) 585 448
Rated Current (Impp) 13.48 10.86
Rated Voltage (Vmpp) 43.40 41.26
Short Circuit Current (Isc) 14.18 11.42
Open Circuit Voltage (Voc) 52.44 50.21
Module Efficiency 22.65 %

Absolute Maximum Rating
Operating Temperature From -40 to +85°C
Hail Diameter @ 80km/h Up to 25mm
Front Side Maximum Static Loading 5400Pa
Rear Side Maximum Static Loading 2400Pa
Maximum Series Fuse Rating 30A
Fire Rating (UL 61730) Type 29
Maximum System Voltage DC 1000V/1500V
