Frequently Asked Questions
What type of battery is the Trojan J305E-AC?
The Trojan J305E-AC is a 6 volt flooded lead acid deep cycle battery designed for applications that require reliable, long lasting power and consistent performance over extended periods. Unlike automotive batteries, which are engineered to provide a short burst of energy for starting engines, deep cycle batteries like the J305E-AC are specifically designed to deliver steady power and withstand repeated discharge and recharge cycles.
A flooded lead acid battery (also known as a wet cell battery) uses liquid electrolyte that surrounds the lead plates inside the battery. The electrolyte is a mixture of sulfuric acid and water that allows the chemical reaction needed to store and release electrical energy. Because the electrolyte is in liquid form, flooded batteries require periodic maintenance, including checking electrolyte levels and adding distilled water when needed to maintain proper operation. Flooded lead acid batteries are a popular choice for renewable energy systems, golf carts, marine applications, RVs, and industrial equipment because they offer proven reliability, high surge capability, and a long service life when properly maintained. The Trojan J305E-AC combines traditional flooded battery technology with Trojan’s deep cycle design expertise to provide dependable energy storage for applications that demand durable, repeatable performance.
What type of terminals does the Trojan J305E-AC use?

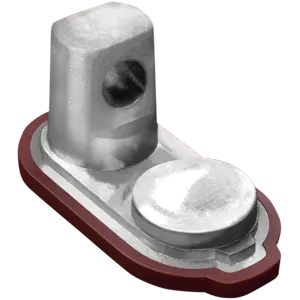

The Trojan J305E-AC uses an Embedded Universal Terminal (EUT). This terminal design provides a secure connection point for battery cables and is commonly used in applications where reliable, durable electrical connections are required.
What is the difference between the Trojan J305E-AC and J305P-AC?
The Trojan J305E-AC and J305P-AC are very similar 6V flooded lead acid deep cycle batteries, but they are designed with different terminal configurations, physical dimensions, capacity ratings, and intended applications. The biggest difference for most customers is the terminal type and fitment.
|
Specification
|
J350E-AC
|
J305P-AC
|
|
Battery Type
|
Flooded Lead
Acid Deep Cycle
|
Flooded Lead
Acid Deep Cycle
|
|
Voltage
|
6VDC
|
6VDC
|
|
BCI Group Size
|
902
|
902
|
|
20 Hour Capacity
|
305Ah
|
330Ah
|
|
5 Hour Capacity
|
250Ah
|
271Ah
|
|
Terminal Type
|
EUT
(Embedded Universal Terminal)
|
DT
(Automotive Post & Stud Terminal)
|
|
Dimension
|
12.35 x 6.85 x 14.41 in
|
11.66 x 6.94 x 14.42 in
|
|
Weight
|
83 lbs (37.65 kg)
|
96 lbs (43.54 kg)
|
Which Battery Should I Choose?
Choose the Trojan J305E-AC if:
- Your existing system uses EUT terminals
- You are replacing batteries in aerial work platforms or industrial equipment
- You need a reliable 6V deep cycle battery with 305Ah capacity
- Your battery cables are already configured for EUT connections
Choose the Trojan J305P-AC if:
- Your system uses DT terminals
- You need additional capacity
- Your cables are designed for automotive post and stud connections
- You want a higher capacity option in the same general battery class
Can the Trojan J305E-AC be used for solar power systems and off-grid cabins?
Yes. The Trojan J305E-AC is a popular choice for off-grid solar power systems, remote cabins, and renewable energy storage applications because it is designed to store energy generated from solar panels and provide reliable power when solar production is limited, such as at night or during periods of low sunlight. As a deep cycle battery, the J305E-AC is built to handle repeated charging and discharging, making it well suited for applications that require consistent energy storage over time. For larger power requirements, multiple J305E-AC batteries can be connected together in a battery bank to increase overall storage capacity and support the energy needs of off-grid homes, cabins, remote sites, and other standalone power systems. Proper system sizing, battery configuration, and charging equipment should be considered to ensure optimal performance and battery life.
Can the Trojan J305E-AC be used in RV or marine applications?
Yes. The J305E-AC can be used in RV and marine applications where deep cycle battery performance is required. Users should confirm available space, charging system compatibility, and voltage requirements before installation.
Can the Trojan J305E-AC be used in a golf cart?
Yes. The Trojan J305E-AC is a popular choice for golf carts, utility vehicles, and electric vehicles because it is specifically designed as a deep cycle battery that can deliver consistent power over extended periods. Unlike standard automotive batteries that are built for short bursts of energy to start an engine, the J305E-AC is engineered to provide sustained power while handling frequent discharge and recharge cycles.
Charging & Maintenance
What charger should I use for a Trojan J305E-AC battery?
The J305E-AC should be charged with a charger designed for 6V flooded lead acid deep cycle batteries. For solar systems, use a charge controller programmed for flooded lead acid batteries.
Does the Trojan J305E-AC require maintenance?
Yes. Because the Trojan J305E-AC is a flooded lead acid deep cycle battery, it requires regular maintenance to help ensure reliable performance, maximize battery life, and maintain proper charging and discharging capability. Unlike sealed batteries such as AGM or lithium batteries, flooded batteries use a liquid electrolyte that can decrease over time due to normal operation and charging. Routine inspections and maintenance are necessary to keep the battery operating at its best.
Recommended maintenance for the Trojan J305E-AC includes:
- Checking electrolyte levels
- Adding distilled water when needed
- Cleaning battery terminals
- Inspecting connections for corrosion
How often should I add water to a Trojan J305E-AC?
The frequency of adding water to a Trojan J305E-AC depends on several factors, including charging settings, operating temperature, usage patterns, and how frequently the battery is cycled. Because the J305E-AC is a flooded lead acid battery, it uses a liquid electrolyte solution that naturally loses water during normal charging and operation. Regularly checking the electrolyte level is an important part of maintaining battery performance and extending service life. As a general guideline, electrolyte levels should be inspected at least once per month during normal use. Batteries that experience heavy cycling, high temperatures, or frequent charging may require more frequent inspections. When electrolyte levels are low, add only distilled water to bring the level back to the manufacturer’s recommended range. Never add tap water, as minerals and impurities can damage the battery and reduce performance.
Can I use a solar charge controller with the Trojan J305E-AC?
Yes. A solar charge controller can be used with the J305E-AC. The controller should be configured for flooded lead acid battery charging settings to properly maintain battery health.
Choosing The Right Battery
How do I know if the Trojan J305E-AC is the right battery for my system?
The Trojan J305E-AC is an excellent choice if you're looking for a dependable 6V flooded lead acid deep cycle battery that delivers reliable, long lasting power. Its deep cycle design makes it well suited for a wide range of demanding applications, including off-grid solar power systems, golf carts and electric utility vehicles, RV and marine systems, floor cleaning machines, industrial equipment, backup power systems, and remote power installations where consistent, dependable energy storage is essential. Before purchasing, make sure the battery matches your system's requirements. Verify the following:
- Voltage: Ensure your system is designed for a 6V battery or a battery bank built from multiple 6V batteries.
- Capacity: Confirm that the 305Ah capacity meets your runtime and energy storage needs.
- Physical Dimensions: Check that the battery will fit your battery compartment or tray.
- Terminal Configuration: Verify that the J305E-AC's Embedded Universal Terminal (EUT) is compatible with your existing battery cables and connections.
- Charging System: Make sure your charger or solar charge controller is compatible with flooded lead acid batteries.
If you're replacing an existing battery, it's also a good idea to compare the model number, dimensions, and terminal type to ensure a proper replacement.
Not sure if the Trojan J305E-AC is the right fit? The Solarflexion team is here to help. Give us a call at 800-942-2424 and we'll help you determine the correct battery for your application, answer any compatibility questions, and make sure you get the best solution for your system before you order.
Is the Trojan J305E-AC better than lithium batteries?
The Trojan J305E-AC and lithium batteries each have their advantages and the best choice depends on your specific application, budget, and performance requirements. There isn't a one size fits all answer. The J305E-AC is a proven 6V flooded lead acid deep cycle battery that has been trusted for decades in off-grid solar systems, golf carts, industrial equipment, and other demanding applications. It offers reliable performance, is widely compatible with existing charging systems, and has a lower upfront cost than most lithium battery options.
Lithium batteries, on the other hand, are lighter, require little to no maintenance, can typically be discharged deeper without affecting battery life, and generally provide a longer cycle life. However, they also come with a higher initial investment and may require compatible chargers or system modifications when replacing lead acid batteries.
If you're replacing an existing flooded lead acid battery bank, the Trojan J305E-AC is often the most straightforward and cost effective solution because it can typically be installed without making changes to your charging equipment or battery configuration. If you're designing a new system or are looking for maximum energy density, reduced maintenance, and longer service life, a lithium battery may be worth considering.
