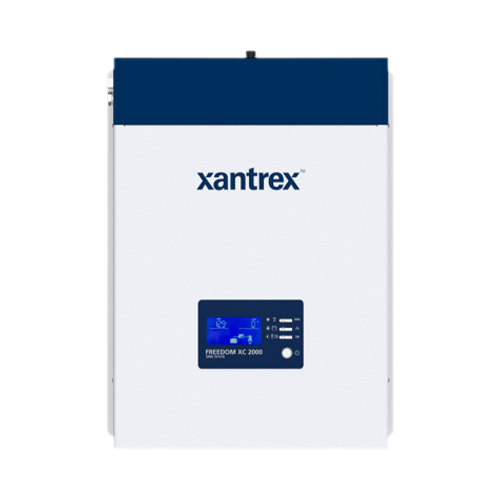

Xantrex Freedom XC 817-2080-11 2kW 12VDC 230VAC True Sine Wave Inverter/Charger
Xantrex Freedom XC 817-2080-11 2kW 12VDC 230VAC True Sine Wave Inverter/Charger
Save 5% with code AMERICA5



  • This is a special order product. See our return policy for more information. Lead time applies.

Our Price: $1,265.43


Product Code: 817-2080-11
Qty:

Description Document(s)


Xantrex Freedom XC 817-2080-11 2kW 12VDC 230VAC True Sine Wave Inverter/Charger

Manufacturer Part#: 817-2080-11

The FREEDOM XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including a fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

  • Exceptional full rated performance in all climate temperatures
  • Ability to charge dead batteries down to 0 V
  • Designed to charge lithium ion batteries
  • View, control and configure via Bluetooth app on iOS and Android
Specifications

Full data sheet can be found in the Document(s) tab above.

Electrical Specifications - Inverter
AC Output Operating Voltage Options 220 / 230 / 240 V
Continuous Output Power Continuous Power 2000 W @40ºC True Sine Wave (TSW)
Continuous AC Output Current 8.7 A
Surge Power 4000 W (> 2 sec)
Frequency (Configurable) 50 or 60 Hz
DC Nominal Current At Full Load 192 ADC
Peak Efficiency 93%
Full Load Efficiency > 90%
Electrical Specifications - Charger
Min Battery Voltage For Charging 0.0 VDC
Max DC Output Voltage 17.0 VDC (custom battery type)
Selectable DC Output Current User Selectable: 5 - 80 A
Full Load Max AC Input Current (Charging) 5.6 A
Operating Input AC Pass-Through Voltage Range 170 - 280 V
Safe Non-Operating Input AC Voltage Range Up to 300 V
Power Factor At Full Charge Rate > 98%

General Specifications
Operating Temperature Range -20 to 60ºC, with output de-rated above 40°C
Storage Temperature Range -40 to 70ºC
Operating Humidity Range 5 to 95% RH, non-condensing
Transfer Relay AC Current Rating 30 A, 24 A continuous
DC Input Operating Voltage Range 10.0 - 17.0 VDC
Dimension Without Flanges
(L x W x H) 		390 x 275 x 102 mm
15.4 x 10.8 x 4.0 in
Dimension With Flanges
(L x W x H) 		390 x 305 x 102 mm
15.4 x 12.0 x 4.0 in
Weight 7.5 kg / 16.5 lbs
