S-5! Brackets VersaBracket-VB-47 Attachment For Metal Roofs

S-5! Brackets VersaBracket-VB-47 Attachment For Metal Roofs



Our Price: $3.86


Product Code: S-5-VERSABRACKET-VB-47
Qty:

Description Document(s)


S-5! Brackets VersaBracket-VB-47 Attachment For Metal Roofs

Manufacturer Part#: S-5-VersaBracket-VB-47

VersaBracket VB-47 can be used to mount virtually anything to an exposed-fastened roof system and is compatible with almost any trapezoidal, exposed-fastened profile (see image below). No messy sealants to apply! No chance for leaks! The VersaBracket comes with factory-applied sealant already in the base for a water-tight attachment. Also available in a taller version, the VersaBracket VB-67.

VersaBracket is so strong, it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the VersaBracket is the perfect match for our ColorGard snow retention systems (For corrugated roofs use CorruBracket). VersaBracket is extremely economical and facilitates quick and easy installation.

Each VersaBracket comes with factory-applied butyl sealant in the base. A structural aluminum attachment bracket, VersaBracket is compatible with most common metal roofing materials. The ColorGard Crossmember rail simply fastens to the VersaBracket with self-drilling screws (not included). Select a pre-painted metal color strip of your choice or simply use ColorGard without a color strip. With or without the color strip, ColorGard provides functional protection with a great look.

VersaBracket is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e. wood decking, wood or steel purlins or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align and apply. Secure through the pre-punched holes using the appropriate screws (not included) for the supporting structure.

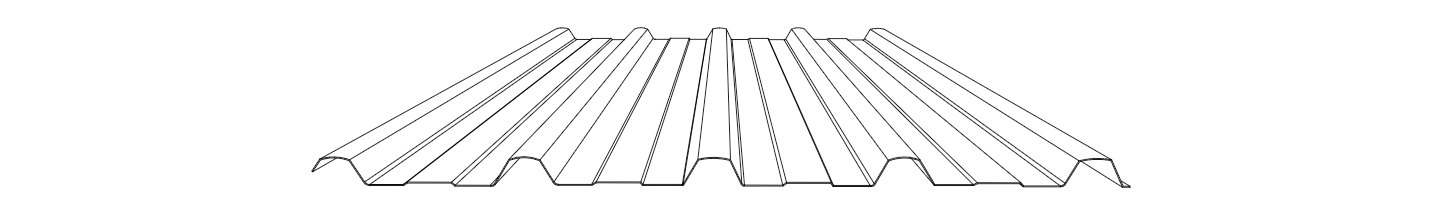

Trapezoidal Roof
Specifications

Full brochure data sheet can be found in the Document(s) tab above.

Dimension 3.5 x 1.0 x 3.5 inch
Weight 5.0oz
