COTEK CX2425 25A 28.8V Battery Charger

COTEK CX2425 25A 28.8V Battery Charger

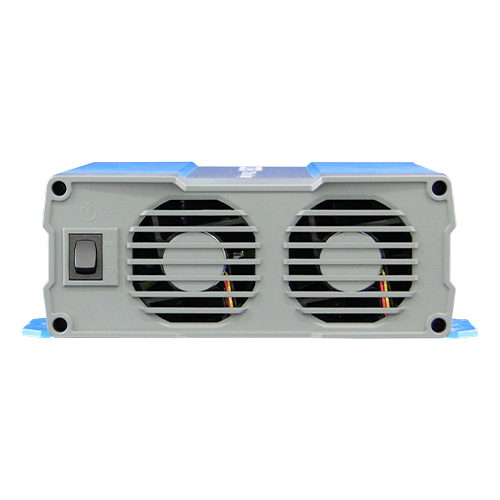

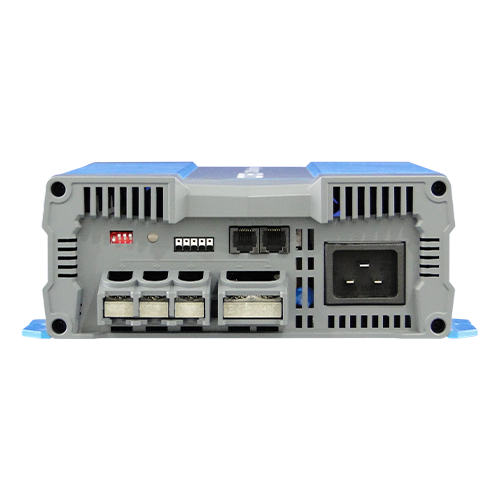

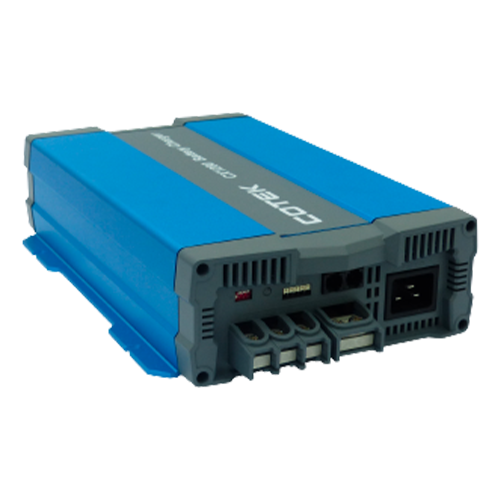

Alternative Views:

Our Price: $317.10

Product Code: CX2425

Description Document(s)

COTEK CX2415 15A 28.8V Battery Charger

Manufacturer Part#: CX2425

COTEK is committed to providing proactive service, innovative technology and total quality assurance since COTEK was established in 1986. COTEK is a technology-oriented company focusing on developing, designing and manufacturing product.

The COTEK CX2425 battery charger uses a 3-stage charging cycle to safely and reliably charge Lead Acid, Li-ion, GEL, and AGM type batteries. The charger has a built-in short circuit, over voltage, over temperature, and brown-out protection. The CX2425 charger can provide remote communication either through an available remote controller or an RS-232 connection.


  • Universal AC input with active PFC
  • Support optional remote controller (CR-1)
  • 2-stage fan speed control
  • Built-in battery rescue function
  • Built-in Engine Start Battery (ESB) output function
  • Protection: Short Circuit / Over Voltage / Over Temperature

Full data sheet can be found in the Document(s) tab above.

Battery Type Lead Acid / Li-ion / GEL / AGM
Standard Boost Charge Voltage 28.8V / 29.4V
(Select by S1-1)
Standard Float Charge Voltage 27.6V / 27V
(Select by S1-2)
Main Rated Current 25A
Current Range 0 ~ 25A
Main Output 3
Battery Charging Mode 3 - stage charging capability (IUOU)
Single Output Current Limit 25A
Voltage Range 90 ~ 264VAC
Power Factor (Typ.) PF > 0.92 at full load
Frequency Range 47 ~ 63Hz
Efficiency (Typ.) at 230VAC 90%
AC Current (Typ.) 8.3A/ 100VAC
3.6A / 240VAC
Leakage Current For earth < 1mA / 240VAC
(W x H x D)
213 x 76.5 x 272.4 mm
8.39 x 3.01 x 10.72 in
Packing 2.9kg

Safty & EMC
Safety Standards Certified EN 60335-1,
EN 60335-2-29
Withstand Voltage I/P-O/P: 4242VDC, I/P-FG: 1768VDC, O/P-FG: 700VDC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC
EMI Conduction & Radiation EN 55022; EN 55024; More...
Harmonic Current EN 61000-3-2; EN 61000-3-3; More...
EMS Immunity IEC 61000-4-2, 3, 4, 5, 6, 8, 11; ENV 50204
