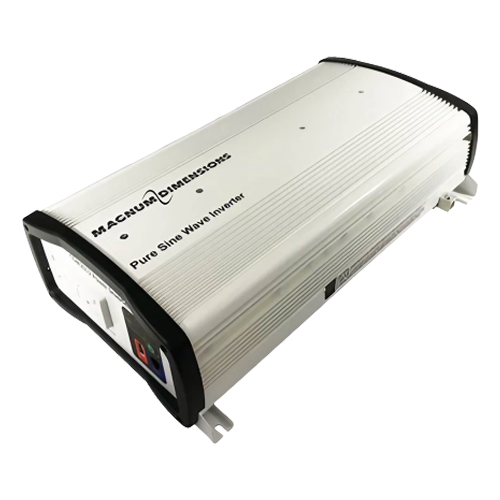

Magnum Energy CSW Series CSW2012 2kW 12VDC Pure Sine Wave Inverter w/ GFCI

Magnum Energy CSW Series CSW2012 2kW 12VDC Pure Sine Wave Inverter w/ GFCI



Our Price: $591.68

Product Code: CSW2012
Qty:

Description Document(s)


Magnum Energy CSW Series CSW2012 2kW 12VDC Pure Sine Wave Inverter w/ GFCI

Manufacturer Part#: CSW2012

The Magnum-Dimensions CSW Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate. The CSW will provide you with reliable AC power for trouble-free use.

  • Compact & Lightweight - The CSW provides pure sine wave power from a small footprint designed to fit in tight vehicle and marine spaces
  • Digital Display - The alphanumeric display shows the inverter's battery voltage, total AC output power, along with additional operation codes
  • GFCI AC Outlet - Plug in two pieces of equipment directly to the CSW and know that the GFCI outlet will quickly stop the flow of electricity should a ground fault occur
Specifications

Full data sheet can be found in the Document(s) tab above.

Inverter Specifications - Output
Continuous Power At Nominal DC Voltage 2,000 watts
Peak Surge Power 4,000 watts
AC Output Voltage At 12.5 VDC 120 VAC ± 5%
AC Ouput Current 16.6 AAC
AC Output Waveform Pure Sine Wave
USB 5 V, 2.1 A
Inverter Specifications - Input
Nominal DC Input Voltage 12.5 VDC
DC Input Voltage Range 10.5 - 15.5 VDC
No Load Draw < 1.2 ADC
High Voltage Shutdown 15.5 VDC
Low Voltage Alarm 11.2 VDC, Audible
Low Voltage Shutdown 10.5 VDC

Physical Specifications
Dimensions
(L x W x H)
16.3 x 9.7 x 4.3 in
41.4 x 23.1 x 10.9 cm
Weight 11.5 lbs / 5.2 kg
Mounting Shelf (top or bottom up) or bulkhead (DC terminals MUST be facing up)
