Magnum Energy CSW Series CSW2012-HX 2kW 12VDC Pure Sine Wave Inverter w/ Transfer Switch Hardwire
Magnum Energy CSW Series CSW2012-HX 2kW 12VDC Pure Sine Wave Inverter w/ Transfer Switch Hardwire

Our Price: $689.12


Product Code: CSW2012-HX
Qty:

Description Document(s)


Magnum Energy CSW Series CSW2012-HX 2kW 12VDC Pure Sine Wave Inverter w/ Transfer Switch Hardwire

Manufacturer Part#: CSW2012-HX

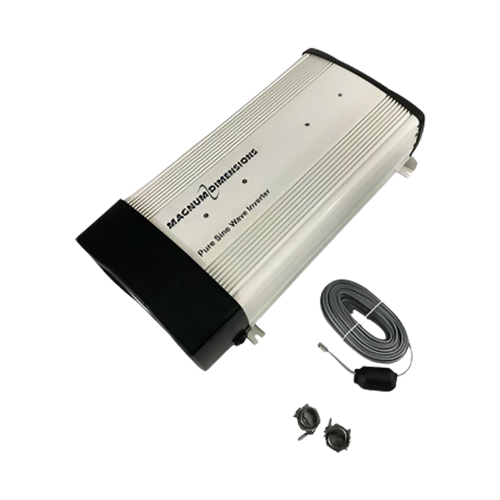

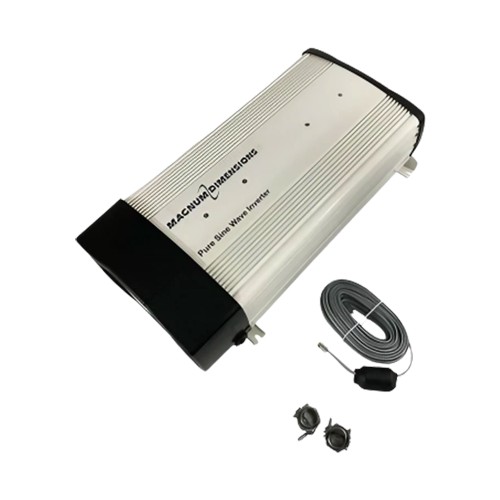

The Magnum Energy CSW2012-HX is a 2kW 12VDC Pure Sine Wave Inverter. It provides seamless switching between shore power and battery power while delivering clean stable AC power for sensitive electronics, appliances and equipment.

The CSW2012-HX includes AC hardwire input and output connections an integrated display port for remote monitoring and an ignition start port that enables automatic inverter operation from a vehicle's ignition signal. Its compact, high-efficiency design makes it an excellent choice for commercial vehicles, emergency response units, work trucks, RVs, marine systems, and other demanding mobile power applications.

Key Features:

  • 2kW continuous output power with 4kW surge capacity
  • 12VDC input with 120VAC pure sine wave output
  • Built in 30A automatic transfer switch
  • Hardwired AC input and output for permanent installations
  • Display port for optional remote monitoring
  • Ignition start port for automatic vehicle-controlled operation
  • High efficiency operation
  • Compact, lightweight design for easy installation
  • Heavy duty DC terminals and integrated cooling fans
  • Ideal for commercial vehicles, fleet, RV, marine, and off-grid power systems
Specifications

Full data sheet can be found in the Document(s) tab above.

Inverter Specifications - Output
Continuous Power At Nominal DC Voltage 2,000 watts
Peak Surge Power 4,000 watts
AC Output Voltage At 12.5 VDC 120 VAC ± 5%
AC Output Current 16.6 AAC
AC Output Waveform Pure Sine Wave
USB 5 V, 2.1 A
Physical Specifications
Dimensions
(L x W x H) 		17.0 x 9.0 x 4.5 in
43.2 x 22.9 x 11.4 cm
Weight 13.0 lbs / 5.9 kg
Mounting Shelf (top or bottom up) or bulkhead
(DC terminals MUST be facing up)
Inverter Specifications - Input
Nominal DC Input Voltage 12.5 VDC
DC Input Voltage Range 10.5 - 15.5 VDC
No Load Draw < 1.5 ADC
High Voltage Shutdown 15.5 VDC
Low Voltage Alarm 11.2 VDC, Audible
Low Voltage Shutdown 10.5 VDC
